- Inner diameter measurement system
- Basic technical data
Inner diameter measurement system

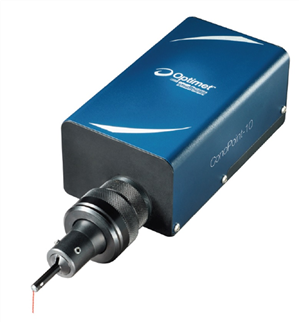

ConoPoint with periscope
- inner diameater measurement with the very small size, Φ5
- 180° Rotation
- 150° Angular coverage
- Measurement for object of the direction as an angle of 90° with standard sensor
- Applicable to all conopoint sensor(ConoPoint-10, ConoPoint-20)
- Application for standard 75mm lens(possible to use by Customizing other lens)
- API manual and DLL S/W library(C, C++, C#, Labview support)
Technical Specification
| Accessory type |
Periscope for 75mm lenx |
| P/N |
3Z80510 |
| Measurement Range |
mm |
9.5 |
| Clearance |
mm |
0.5 |
| Linearity |
±% |
0.15 |
| Repeatability |
um |
0.3 |
Lateral Axis X/Y
| X laser Spot Size |
um |
47 |
| Angular Coverage |
° |
150 |
General specifications
Maximum depth range
| Maximum Penetration |
mm |
15 |
| Minimum Hole Diameter |
mm |
6 |
