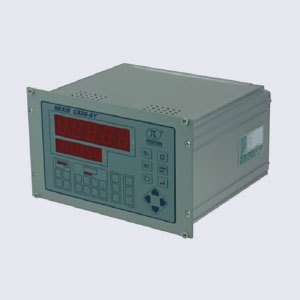

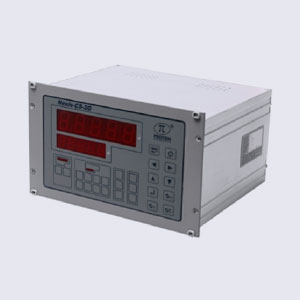

The Proton Products NEXiSTM CS2G Series of production line controllers are for use on wire insulation or other extrusion production lines.

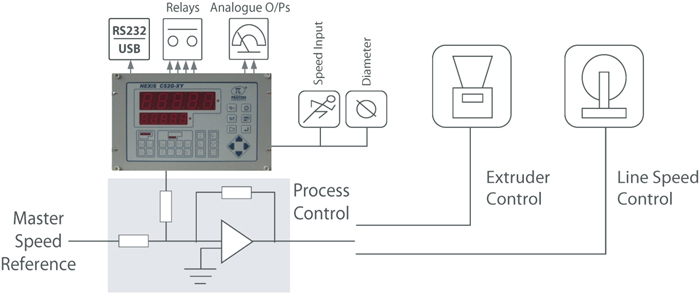

NEXiSTM CS2G Series controllers connect to Proton Products diameter gauges and speed and length gauges for measurement of insulation diameter and line speed respectively. These measurements are then fed into a PI feedback controller whose fully-isolated and floating output may be used to drive insulation extruders or capstan drives.
Insulation diameter is thus actively controlled and kept in tolerance by the NEXiSTM CS2G controller.

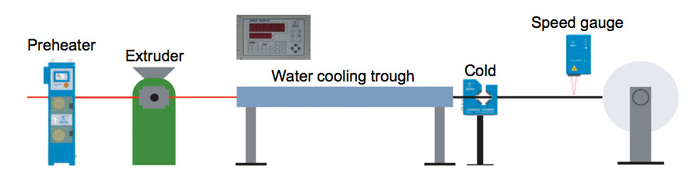

The NEXiSTM CS2G is connected to the Cold DG diameter gauge after the water cooling trough. The Cold diameter measurement is used to control the extruder so that the final insulation diameter is held within tolerance. Since the Cold diameter measurement is located far from the extruder, this control system response time is relatively slow (and dependent on the line speed), but no shrinkage offset is required.

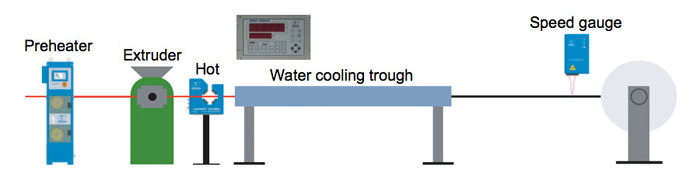

The NEXiSTM CS2G is connected to the Hot DG diameter gauge before the water cooling trough. A shrinkage offset due to cooling is set by the operator and used in conjunction with the Hot diameter measurement to control the extruder so that the final insulation diameter is held within tolerance. Since the Hot diameter measurement is located close to the extruder, this control system response time is relatively fast.
Variants | Control algorithm |
|---|---|
| NEXiSTM CS2G-10 | For connection to single-axis (DG1xxx) Proton Products DG Series Diameter Gauges. |
| NEXiSTM CS2G-10XY | For connection to dual-axis (DG2xxx) Proton Products DG Series Diameter Gauges; controls the average of the X and Y diameter. |
| Screen | 2 row, 7 segment, 5 digit display | Upper row 0.8- (20.32mm) high; lower row 0.5- (12.7mm) high | ||

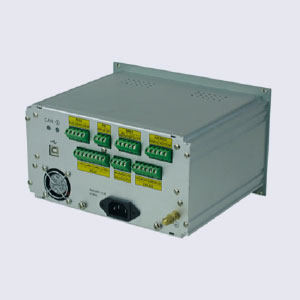

| Serial communications | RS232 | USB | CANbus - (for connection to 1× DG Series gauge) | |
| Line speed inputs | Analogue | Two inputs available for 0 to 10V and 0 to 50V analogue line speed signals; end-user configurable scaling | ||
| Pulse | Two inputs available for 0 to 3V and 0 to 10V pulsed line speed signals; maximum frequency 250 kHz; end-user configurable scaling | |||
| 4×Relay contact outputs | Function (end-user configurable) | Gauge OK | SSFD lump or neck flaw detected | |
| X or Y upper tolerance exceeded | X or Y lower tolerance exceeded | |||
| X upper tolerance exceeded | X lower tolerance exceeded | |||
| Y upper tolerance exceeded | Y lower tolerance exceeded | |||
| Electrical | Maximum voltage | 50VDC / 30VAC | ||
| Maximum current | 500mA | |||
| On resistance (@ 100mA) | < 0.1Ω | |||
| Off resistance | > 10 Ω | |||
| Analogue output 1 | Function (end-user configurable) | ØX | ØXY | |
| Electrical | Output voltage range | 0V to +10V | ||
| Maximum output current | 2mA | |||
| Resolution | 16-bit | |||
| Output voltage scaling is end-user configurable | ||||
| Analogue output 2 | Function (end-user configurable) | ØY | Average Error | |
| Electrical | Output voltage range | ØY: 0V to +10V | ||
| Average Error: -10V to +10V | ||||
| Maximum output current | 2mA | |||
| Resolution | 16-bit | |||
| Output voltage scaling is end-user configurable | ||||
| Control algorithm | Advanced Control Algorithm (ACA) | |||
Specification | Minimum | Typical | Maximum | Units |
|---|---|---|---|---|
| Weight | 2.5 | kg | ||
| 5.5 | lb | |||
| Length | 230 | mm | ||
| 9.1 | inch | |||
| Width | 213.1 | mm | ||
| 8.4 | inch | |||
| Height | 128.5 | mm | ||
| 5.1 | inch | |||
| Power supply voltage (rms) | 84 | 264 | VAC | |
| Power supply frequency | 47 | 440 | Hz | |
| Power supply current (rms) | 1 | A | ||
| Power consumption | 35 | W | ||
| Ambient temperature | 5 | 45 | °C | |
| 41 | 113 | °F | ||
| Relative humidity @ 38°C / 105°F | 90 | % | ||
| Ingress Protection (IP) rating | IP50 | - | ||
| PI Controller output voltage | -10 | 10 | V | |
| PI Controller output current | 10 | mA | ||
| PI Controller output resistance | 10 | Ω | ||
| PI Controller resolution | 12 | bit |
