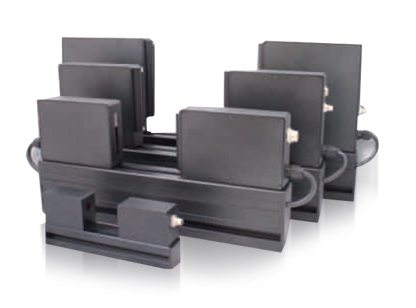

Optical Micrometers
RF651, RF656
Diameter, gaps and position measurement
- Direct through beam micrometers
- Micrometers with telecentric lens
- Measuring ranges from 10 to 100mm
- ±5um accuracy
- Sampling rate up to 10 kHz
- RS232/RS483/Ethernet +4...20 mA/0...10V
- Multi coordinate systems

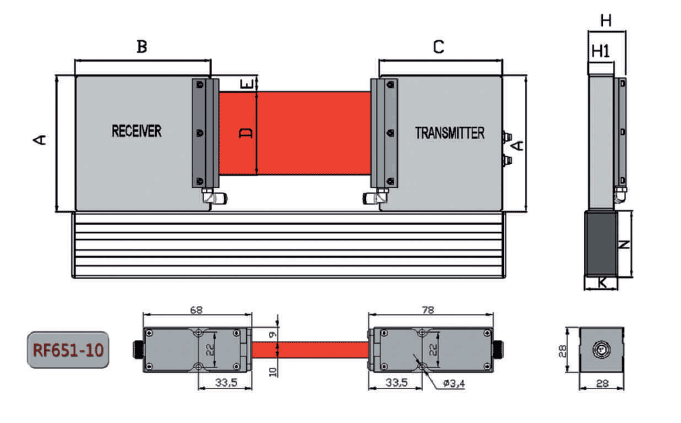

Overall dimension
|
A, mm |
B, mm |
C, mm |
D, mm |
E, mm |
H, mm |
H1,mm |
K, mm |
N, mm |
| RF651-25 |
51 |
139 |
62 |
25 |
13 |
28 |
42,5 |
30 |
30 |
| RF651-25 |
91 |
120 |
134 |
50 |
20 |
31 |
45,5 |
40 |
80 |
| RF651-25 |
128 |
132 |
132 |
75 |
15 |
31 |
45,5 |
40 |
80 |
| RF651-100 |
165 |
165 |
150 |
98 |
20 |
31 |
45,5 |
40 |
80 |

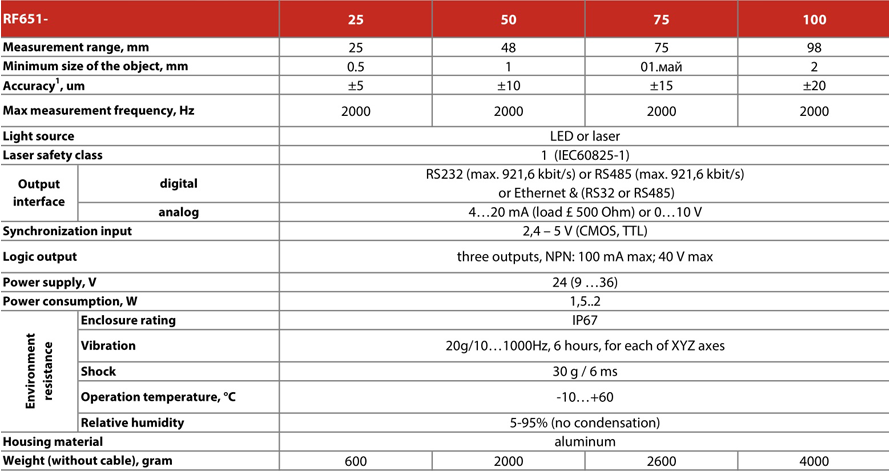

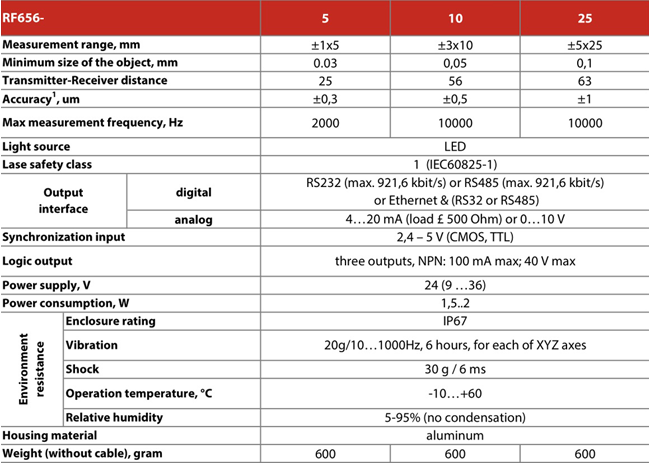

Specifications
